GTM
The GTM 1503 AUTOMATIK is the automation solution to produce just in time prepregs onsite with highest precision. Since the first prototype was put into service in 1987 the concept has been completely reworked and the GTM 1503 AUTOMATIK represents the latest model, equipped with contemporary control technology. Well known aircraft manufacturers have been benefiting from the reliability and precision of the GTM 1503 AUTOMATIK for 30 years.
Fast, efficient and accurate!
Benefits
Highest precision
in surface distribution of the resin and in the resin to fiber ratio
Electronically controlled dosing
ensures continuous quality
Reduced work load
and increased productivity
Improved health protection
for workers through reduced contact with the resin during lamination
Cost advantage
compared to prepregs by more economical raw materials
Overview

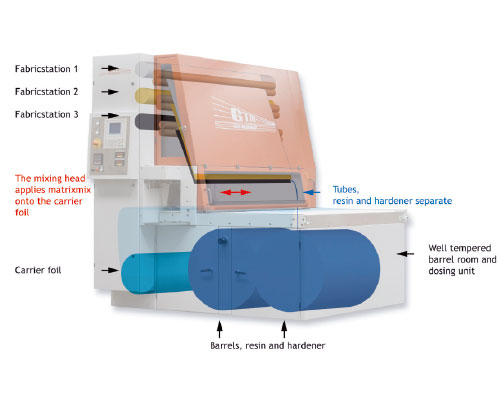

The GTM 1503 AUTOMATIK houses the reservoir of resin and hardener plus the carrier foil in the lower section. Above the conveyor belt three fabrics are ready for processing and can be chosen via the LCD user interface.

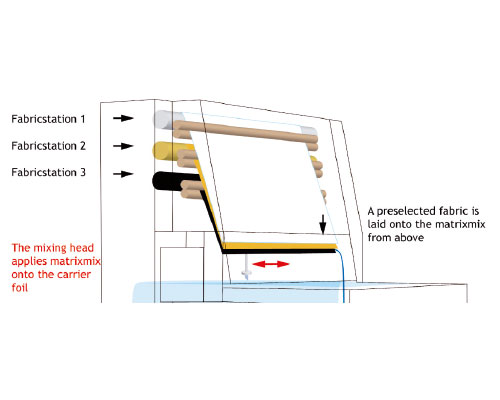

Mixing and dosing
GTM 1503 Automatik applies the mixed resin onto a carrier foil. High precision pumps and an electronically controlled conveyor belt guarantee an optimal surface distribution, which later ensures an ideal resin to fiber ratio in your end product.

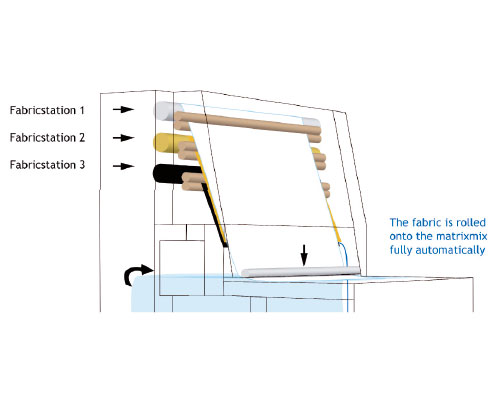

Depot with three different fabrics
The desired fabric is applied onto the resin from above with controlled speed. The automated impregnation ends with cutting the fabric and carrier foil. The just in time prepreg is ready for lamination.
Air exclusion
Air inclusions are minimized by GTM 1503 Automatik compared to hand lay up. By inserting the fabric from the top the matrix is able to impregnate the fabric while effectively displacing the air.
